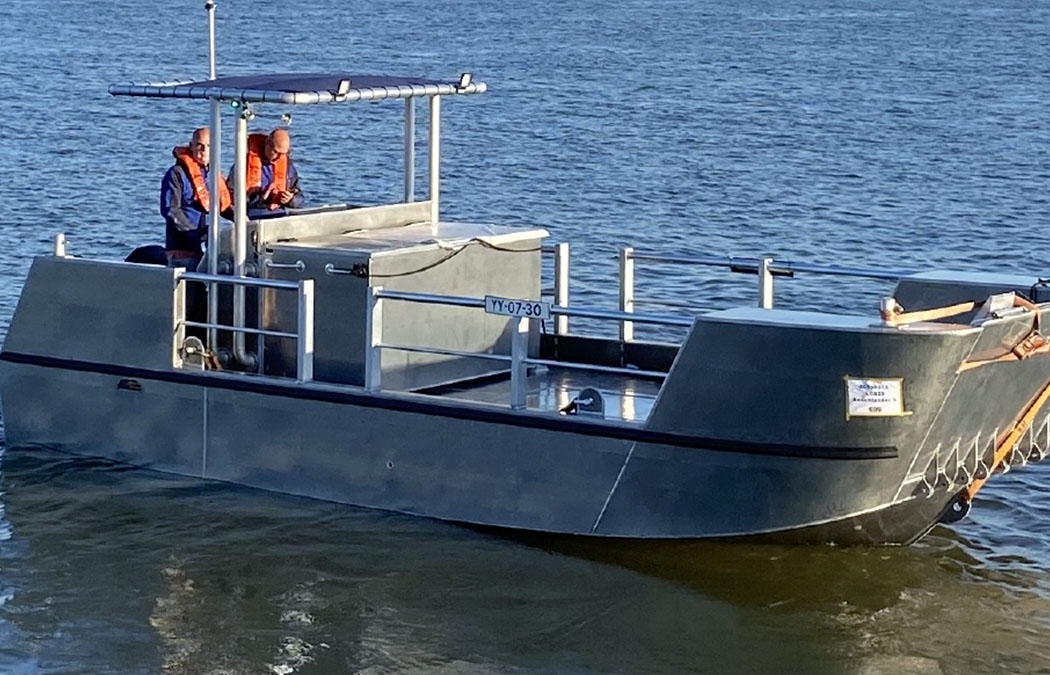

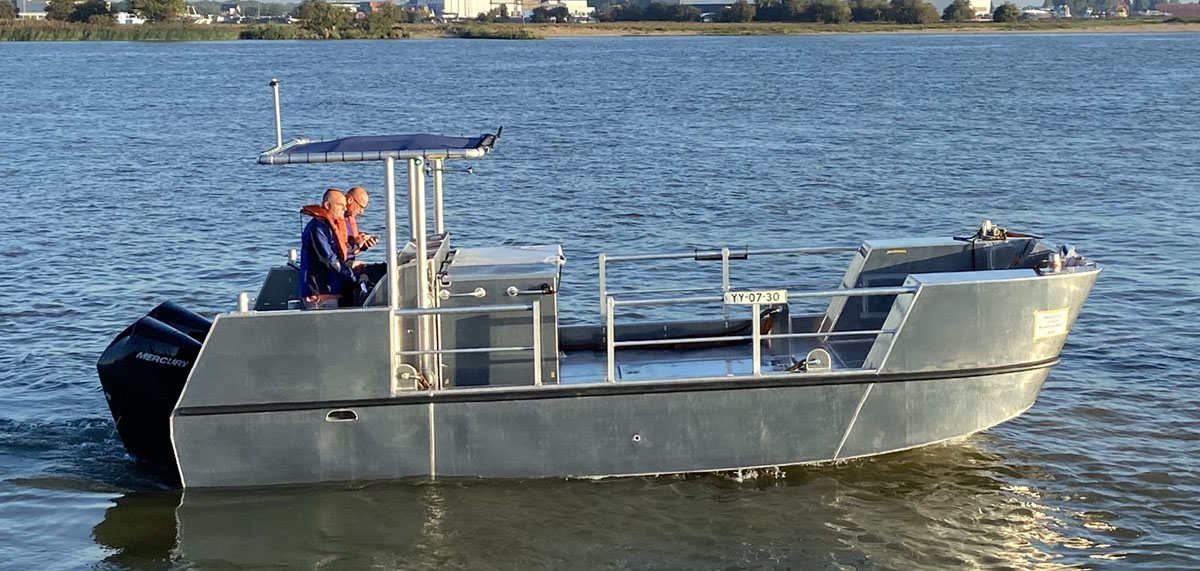

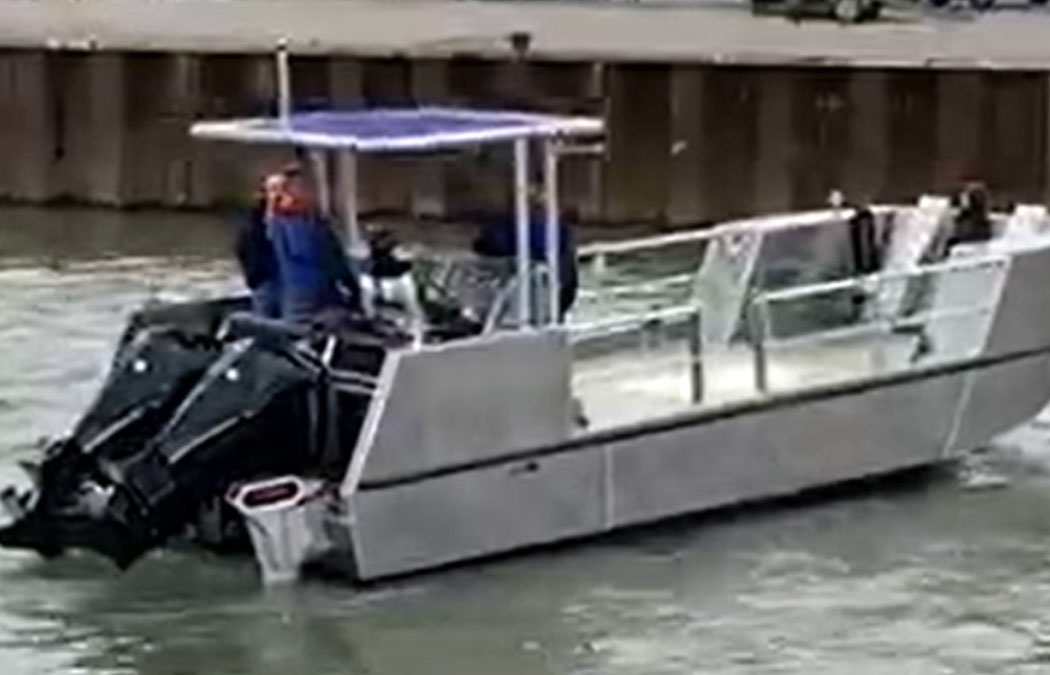

Alunautic Landing craft 8.0 Twin Outboard Hybrid

Alunautic Landing craft 8.0 Twin Outboard Hybrid

Information about the Alunautic Landing craft 8.0 Twin Outboard Hybrid

General information:
Brand:Alunautic
Model:V hull—8.00 m. Landingcraft
Building year:2020
Function:Crew transport - coastal control
Approval:Standard with CE-C
ø Lloyds register on hull and drawing
ø MCA 280 MGM—60 nm
Specifications
Hull:Marine grade Aluminium 6—5 mm
Fender:D-fender plus double rubber push bar.
Specifications:Hull material: Marine grade aluminium
Wide landing door—high protected bulwark, with entrance opening on both side. Large steering console with leaning post and for storage space. Large t-top with canvas cover.
Heavy duty deck with two hatches for store space below deck.
Dimensions:
Length:8.00 m
Beam:3.10 m
Dept:0.80 m
Loading:1.500 Kg
Capacity :
Fuel:2 x 500 L
Crew:2 crew
Passengers:12 persons
Performance:
Max speed: Approx 40Knots (with twin 225hp)
E-mode Approx 6 Knots (with twin 10Kw)
Propulsion system:
Engines:Twin Mercury Seapro 225 HP plus twin 10 Kw Torqueedo with lithium pack Fixed Propeller
Other information
Auxiliary equipment:Basic E-system with 2 batteries and battery switches. Electric system 12Vdc and 220 V ac– shore power plus twin high power fastchargers.
20 Kwh @48 volt lithium batterij pack for electrical engines.
Hydraulic steering, hydraulic—electric ramp cylinders.
Deck layout:Deck: Anti slide
Safety railing—optional bimini cover—bollards
Mast with navigation lighting, antenna, radar
Nautical and communication equipment:echo sounder, GPS, Radar, AIS.
Raymarine VHF Radio 2 x plus handheld VHF radio.
MF/HF radio.
Navtex receiver,
SART transponder, GMDSS approved
EPIRB. GMDSS approved
Various:Search light roof unit with remote control.
Electrical anchor winch with anchor, chain and line
Fire extinguishers.
Ø= optional
